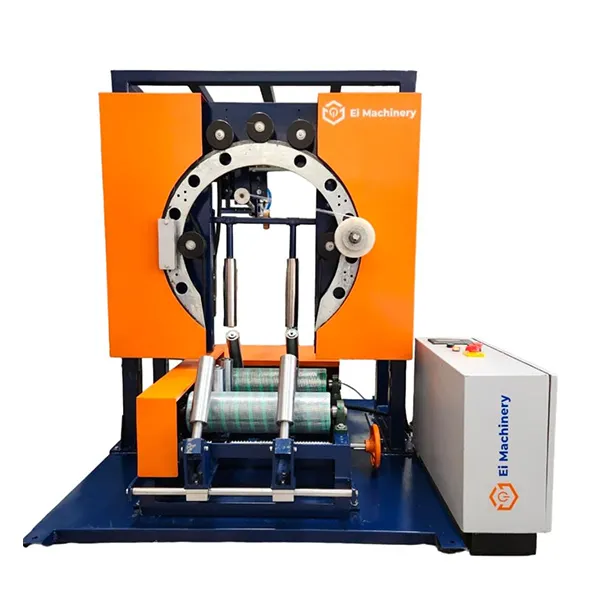

Steel Coil Wrapping Machine
Steel Coil Wrapping Machine can be used to wrap coil with various materials, such as laminated film or damp proof paper tape etc. After being wrapped, the products are good-looking, waterproof, dustproof, anti-rust, which are easy to transport and store.
Ensure Consistent Quality with EI Machinery’s Hose Pipe Wrapping Machine, Engineered for High-Speed Operations and Minimal Maintenance Requirements.
Specification
Power Input:
- Power supply voltage: 3Ph Ac 415-440V 50/60hz
- Power: 2 KW
- Ring Motor: 1 hp
- Roller Motor: 1 hp
Automation
- PLC : Delta
- Drive: VFD (Delta)
Machine Detail
- Body: Heavy Duty M.S. structure
- Color: powder coating
- Ring: M.S. structure
- Size: 1.5*1.4*1.6 meters
- Weight: 550Kgs Approx.
Product Details Output:
- Coil Inner Diameter – Variable
- Coil Outer Diameter – Variable
- Coil Width/Height – Variable
- Coil Weight – Variable
- Coil output – 2 coil/minute (Depend on coil size or operater speed)
Features
- Automatic cutting & holding film only in stretch material, HDPE(Air required 6 bar presser)
- Adjustable overlapping by motor drive.
- Adjustable stretch ratio.
- PLC based operation for timing of wrapping, rotation, cutting.
- Support guide roller adjust by Manual.
- End close by Manual
- Manual tapping.
- Vibration free operation.
Application
- Steel
