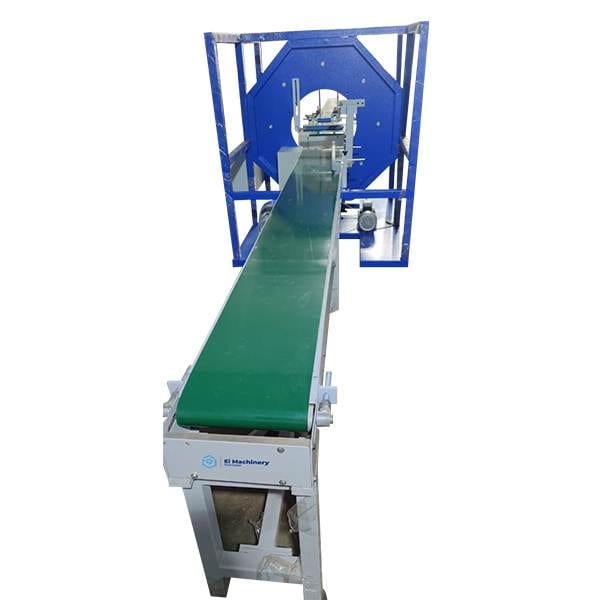

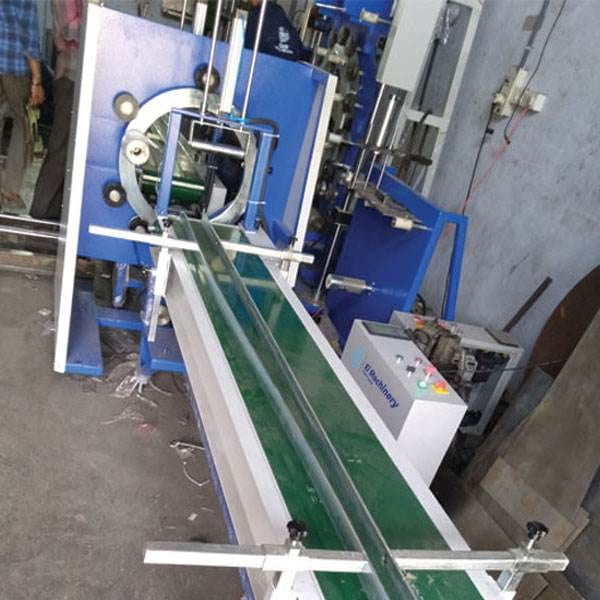

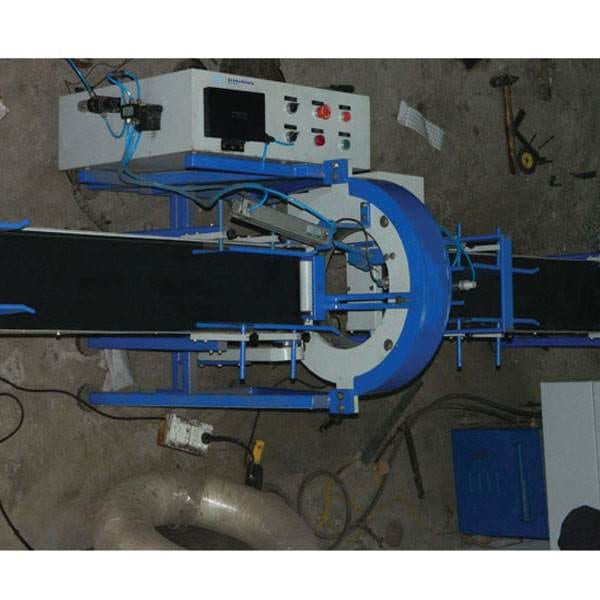

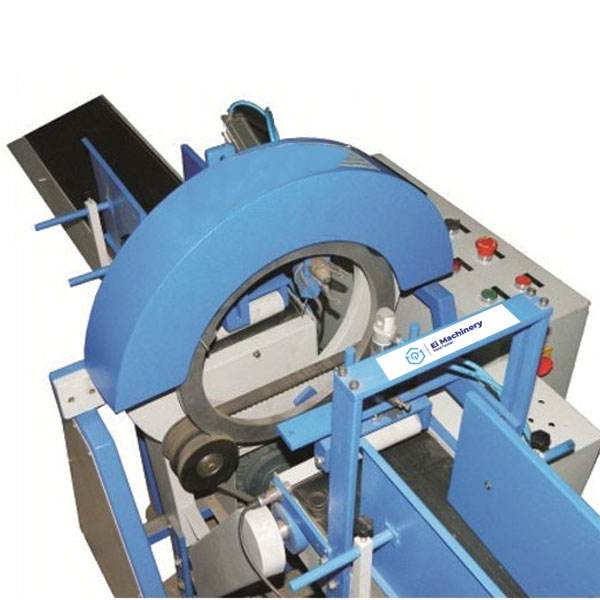

Profile Wrapping Machine
This wrapping machine can be used to wrap Profile with various materials, such as laminated film or damp proof paper tape etc. After being wrapped, the products are good-looking, waterproof, dustproof, anti-rust, which are easy to transport and store.
Specification
Power Input:
- Power supply voltage: 3Ph Ac 415-440V 50/60hz
- Power: 2 KW
- Ring Motor: 1 hp
- Conveyor Motor: 1 hp
Automation
- PLC : Delta
- Drive: VFD (Delta)
Machine Detail
- Body: Heavy Duty M.S. structure
- Color: powder coating
- Ring: M.S. structure
- Ring Size: (Variable)
- Conveyor Type : Belt Conveyor / Power Roller
Product Details Output:
- Profile Diameter – Variable
- Profile length – Variable
- Profile Weight – Variable
Features
- Adjustable overlapping by motor drive.
- Automatic cutting and holding of film.
- Adjustable stretch ratio.
- Vibration free operation.
- PLC based operation for timing of wrapping, rotation, cutting.
- Robust M.S Construction, Powder coated body
- Motors controlled by ac frequency drive.
- Auto Pneumatic Guide for Product Holding (Auto Adjustment),
- Adjustable guide for all products(Manual).
Application
- Profile wrapping
