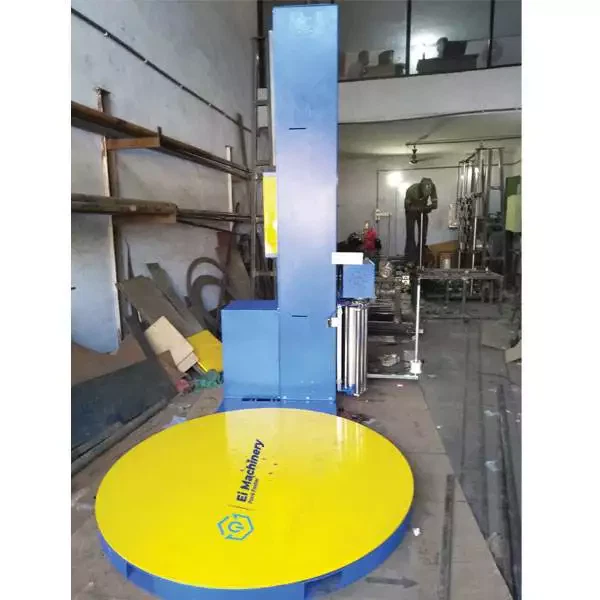

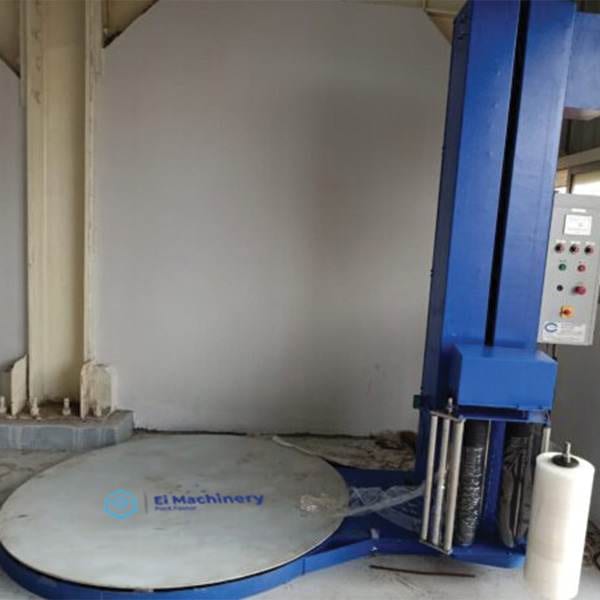

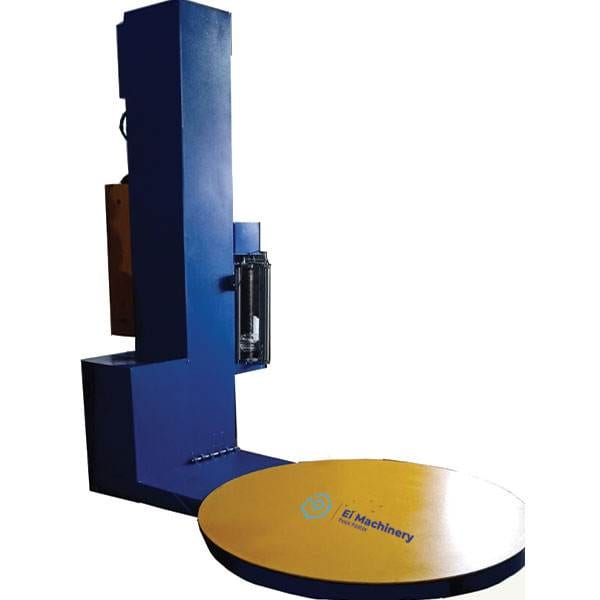

Pallet Wrapping Machine

This wrapping machine can be used to wrap Pallet with various materials, such as laminated film or damp proof paper tape etc. After being wrapped, the products are good-looking, waterproof, dustproof, anti-rust, which are easy to transport and store.


  • Power Supply: 1 Phase, 220-230v, 50/60Hz,
  • Power: 3kw

Load Handling Platform:

  • Turn table diameter: 1600mm
  • Maximum load height: 2000mm
  • Maximum load weight: 1000 KGS
  • Turn table motor: 1 HP motor (CE) with VFD

Film – Delivery System:

  • Spool carriage: Pre stretch with Drive to Control Speed of Pre-stretch unit
  • Pre-stretch Up down motor: 0.5 HP with VFD
  • Pre stretch Capacity: Up to 300 %
  • Film Cut-Off: Manual


  • PLC: Delta (CE)
  • Variable Frequency Drive: Delta (CE)

Machine Dimensions:

  • Machine size (L*W*H): 2.0m L * 1.8m W * 2.5m H
  • Machine weight: 700kgs.


  • Adjustable overlapping by motor drive..
  • Adjustable stretch ratio.
  • Vibration free operation.
  • PLC based operation for timing of wrapping, rotation.


  • Beverages
