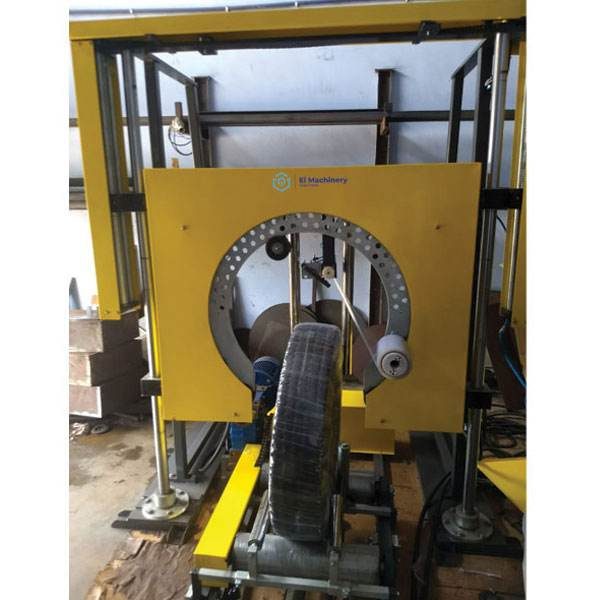

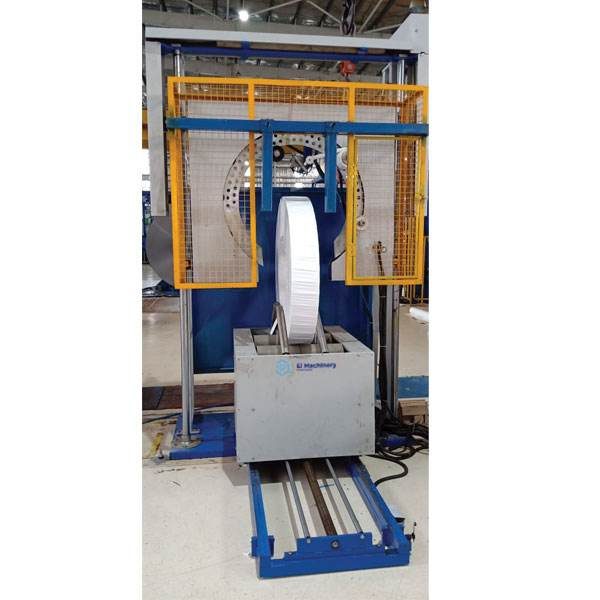

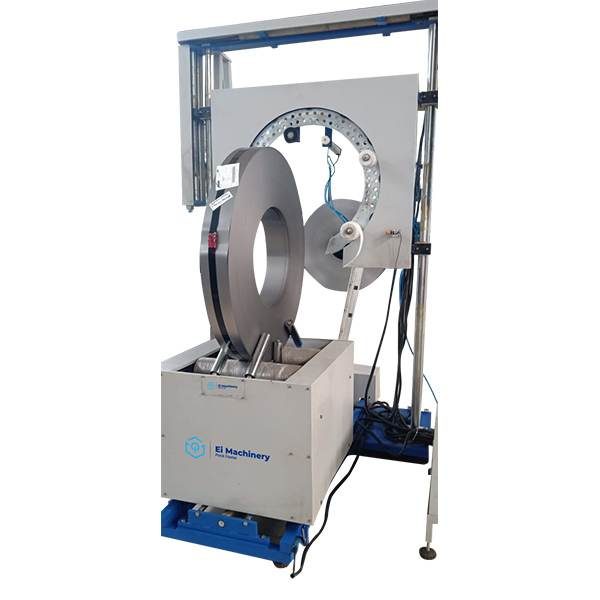

Steel Coil Wrapping Machine With Motorized Trolly and Ring Updown System

This wrapping machine can be used to wrap coil with various materials, such as laminated film or damp proof paper tape etc. After being wrapped, the products are good-looking, waterproof, dustproof, anti-rust, which are easy to transport and store.


Power Input:

  • Power supply voltage: 3Ph Ac 415-440V 50/60hz
  • Power: 3 KW
  • Ring Motor: 1-2 hp
  • Roller Motor: 1-2 hp
  • Ring Up down Motor:1 hp
  • Trolley Unit Motor:1 hp


  • PLC : Delta
  • Drive: VFD (Delta)

Machine Detail

  • Body:  Heavy Duty M.S. structure
  • Color: powder coating
  • Ring: M.S. structure
  • Size: 1.9*1.6*2.0 meters
  • Weight: 550Kgs Approx.

Product Details Output:

  • Coil Inner Diameter – Variable
  • Coil Outer Diameter – Variable
  • Coil Width/Height – Variable
  • Coil Weight – Variable
  • Coil Output – 2 coil/minute(Depend on coil size and operater speed)


  • Automatic cutting & holding film only in stretch material, HDPE(Air required 6 bar presser
  • Adjustable overlapping by motor drive.
  • Adjustable stretch ratio.
  • PLC based operation for timing of wrapping, rotation, cutting.
  • Support guide roller adjust by Manual.
  • End close by Manual
  • Vibration free operation.


  • Steel
