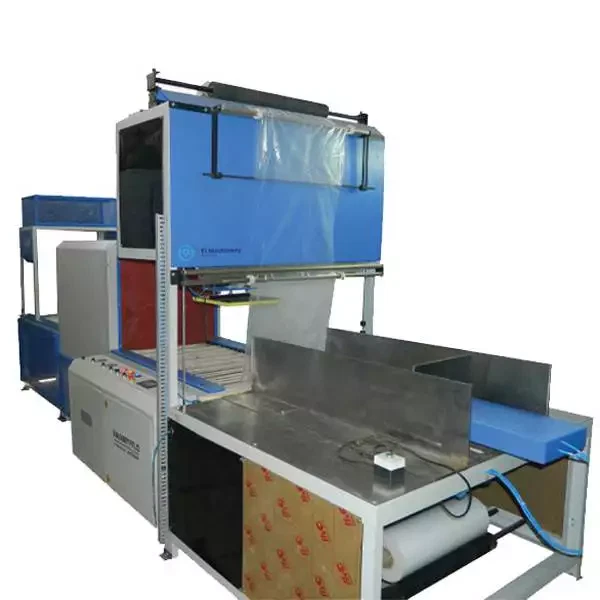

Semi Automatic Box Shrink Wrapping Machine

This wrapping machine can be used to wrap box with various materials, such as LD shrink film pack . After being wrapped, the products are good-looking, waterproof, dustproof, anti-rust, which are easy to transport and store.


Web Sealer Specs.

  • Body: M.S. Powder Coated (5mm) Base ss304 (2mm)
  • Power supply: 1 phase 220 v, 50/50Hz
  • Power (KW): 2KW
  • Sealing and Cutting: Hot bar  mushroom blade 2 side joint 2.5 mm with Normal joint
  • Size(L*W*H)(mm): 1350*1350*2500
  • Packs /min: 3-6/min

Shrink Tunnel Specs.

  • Power supply: 3-phase AC 380-415v , 50/60 Hz
  • Power: 12 KW
  • Body: M.s. Powder Coated
  • Tunnel size(L*W*H)(mm): 2500*970*1650
  • Tunnel Chamber(L*W*H)(mm): 1220*600*450
  • Conveyor: Pencil conveyor with silicon tubes
  • Blower: Single Blower
  • Cooling chamber: 14”
  • Heater: tube heater
  • Insulation: Glass Wool sheet 2.5” thickness
  • Temp. controller: Digital Temperature 0 to 180®c degree


  • Auto Seal Shrink Machine after that to push button
  • Speedy Pack Labour Saving
  • No Damages During Rainy Season Transparent


  • corrugated box
