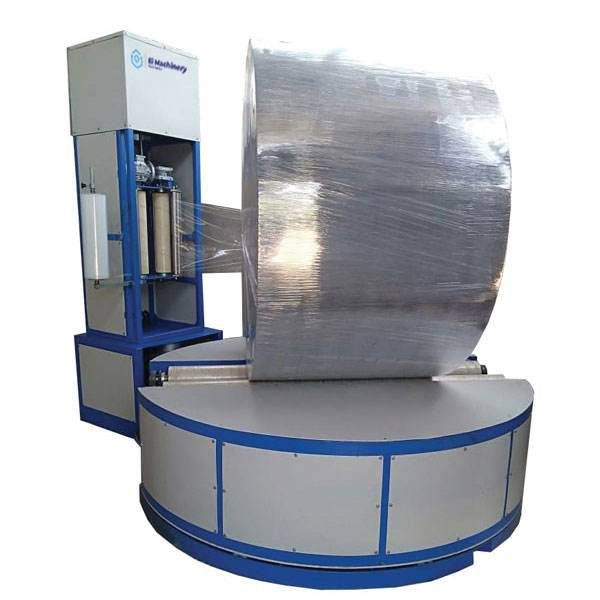

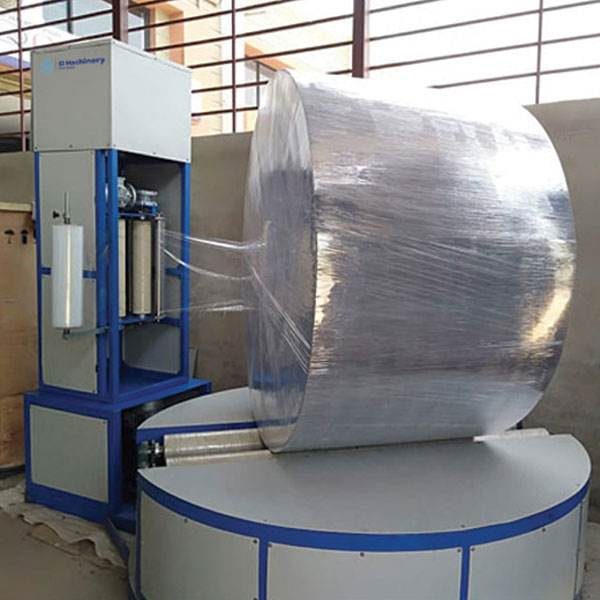

Automatic Reel Wrapping Machine
Automatic Reel Wrapping Machine can be used to wrap product from outer side with various materials, such as laminated film or damp proof paper tape etc. After being wrapped, the products are good-looking, waterproof, dustproof, anti-rust, which are easy to transport and store.
Optimize Your Cable Packaging Operations with EI Machinery’s Cable Coil Wrapping Machine, Designed for Seamless Integration into Existing Production Lines.
Specification
Power Input:
- Power supply voltage: 3 Phase, 380v-415v , 50/60Hz,
- Power: 3 KW
- Turn table Motor: 1-2 hp
- Pre-stretch Motor: 0.5 hp
Automation
- PLC : Delta
- Drive: VFD (Delta)
- Pre-stretch: Pre-stretch system up to 300%
Machine Detail
- Body: M.S. structure
- Color: powder coating
- Size: 2.5*2.5*2.0 meters Approx.
- Weight: 750Kgs Approx.
Product Details:
- Reel Outer Diameter – Variable
- Reel Width/Length – Variable
- Reel Weight – Variable
Features
- Pre stretch unit saving film roll
- Manual pull Material before start.
- Cut Material Manual After wrap
- Adjustable overlapping by motor drive.
- Adjustable stretch ratio.
- PLC based operation for timing of wrapping, rotation.
- End close by Manual
- Vibration free operation.
Application
- Paper
