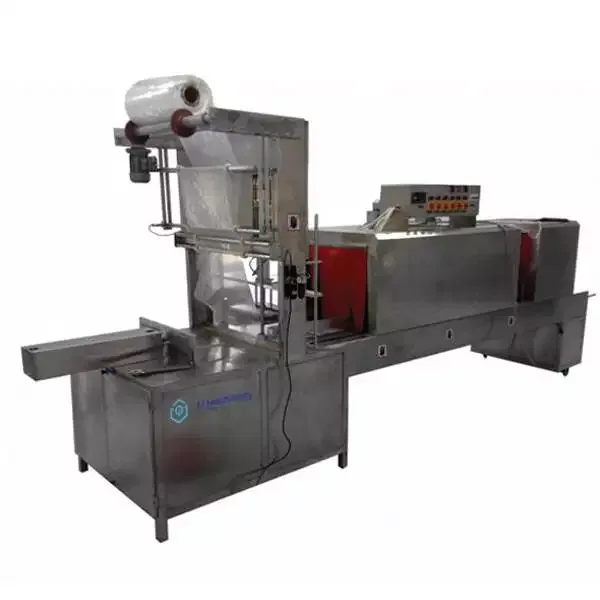

Semi Automatic Bottle Shrink Wrapping Machine

Semi Automatic Bottle Shrink Wrapping Machine can be used to wrap bottle with various materials, such as LD SHRINK Film pack. After being wrapped, the products are good-looking, waterproof, dustproof, anti-rust, which are easy to transport and store.

EI Machinery’s Steel Coil Wrapping Machine: Combining robust design with a ring up-down system to ensure secure and efficient coil packaging.





Specification

Web Sealer Specs.

  • Body: M.S. Powder Coated (5mm) Base ss304 (2mm)
  • Power supply: 1 phase 220 v, 50/50Hz
  • Power (KW): 2KW
  • Sealing and Cutting: Hot bar  mushroom blade 2 side joint 2.5 mm with Normal joint
  • Size(L*W*H)(mm): 1350*1350*2500
  • Packs /min: 3-6/min

Shrink Tunnel Specs.

  • Power supply: 3-phase AC 380-415v , 50/60 Hz
  • Power: 12 KW
  • Body: M.s. Powder Coated
  • Tunnel size(L*W*H)(mm): 2500*970*1650
  • Tunnel Chamber(L*W*H)(mm): 1220*600*450
  • Conveyor: Wire mesh chain with Teflon coating
  • Blower: Single Blower
  • Cooling chamber: 14”
  • Heater: tube heater
  • Insulation: Glass Wool sheet 2.5” thickness
  • Temp. controller: Digital Temperature 0 to 180®c degree

Features

Auto Seal Shrink Machine after that to push button

  • L.D.Shrink Film Pack 50% Cheaper Then Corrugated Boxes
  • Speedy Pack Labour Saving
  • No Damages During Rainy Season Transparent

Application

  • Mineral Water
