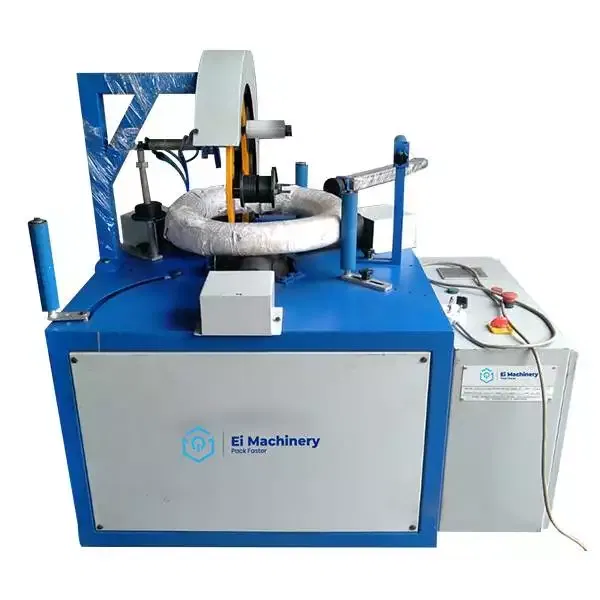

Hose Pipe Wrapping Machine

Hose Pipe Wrapping Machine

This wrapping machine can be used to wrap coil with various materials, such as laminated film or damp proof paper tape etc. After being wrapped, the products are good-looking, waterproof, dustproof, anti-rust, which are easy to transport and store.

Category: Stretch Wrapping Machine

Description

Specification

Power Input:

Power supply voltage: 1Ph Ac 230V 50/60hz
Power: 2 KW
Ring Motor: 0.5-1 hp
Roller Motor: 0.5-1 hp

Automation

PLC : Delta
Drive: VFD (Delta)

Machine Detail

Body: M.S. structure
Color: powder coating
Ring: M.S. structure
Size: 1.5*1.4*1.5 meters
Weight: 550Kgs Approx.

Product Details Output:

Coil Inner Diameter – Variable
Coil Outer Diameter – Variable
Coil Width/Height – Variable
Coil Weight – Variable
Coil output – 2 coil/minute (Depend on coil size or operater speed)

Features

Adjustable overlapping by motor drive.
Automatic cutting and holding of film.
Automatic ejection after wrapping
Adjustable stretch ratio.
Vibration free operation.
PLC based operation for timing of wrapping, rotation, cutting, and ejection

Application

Hose pipe
