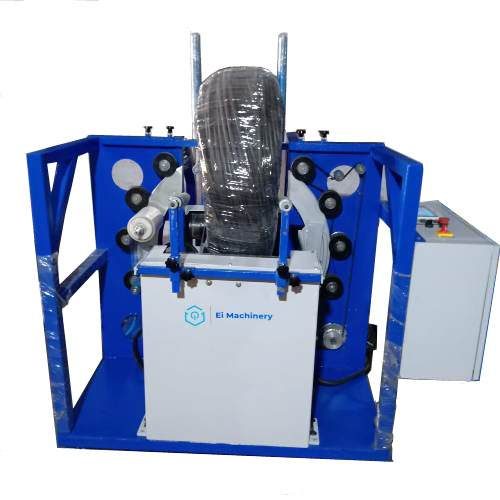

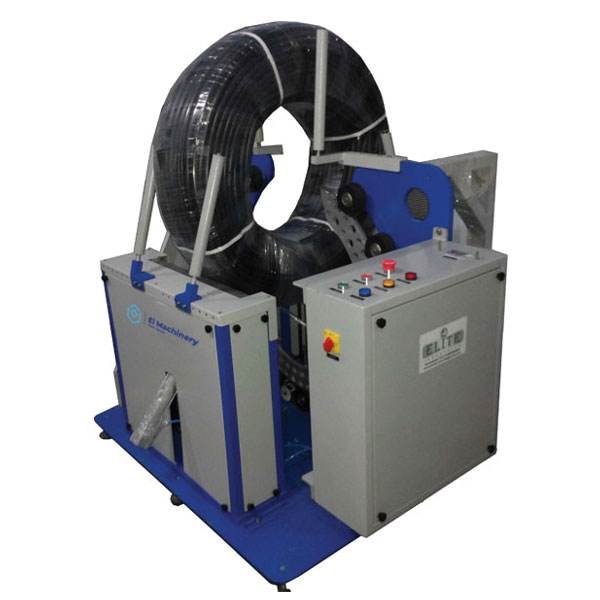

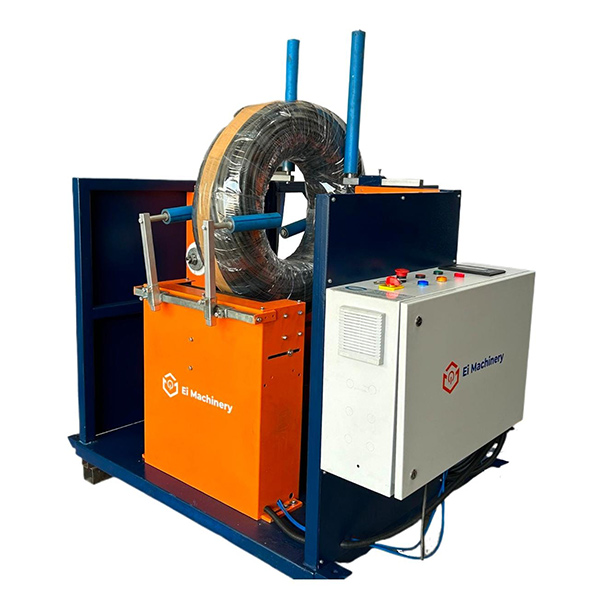

Drip Pipe Coil Wrapping Machine
Drip Pipe Coil Wrapping Machine can be used to wrap coil with various materials, such as laminated film or damp proof paper tape etc. After being wrapped, the products are good-looking, waterproof, dustproof, anti-rust, which are easy to transport and store.
Experience Unmatched Reliability with EI Machinery’s Flat Drip Pipe Coil Outer Wrapping Machine, Designed for Continuous Operation and Minimal Maintenance in Demanding Environments
Specification
Power Input:
- Power supply voltage: 1Ph Ac 230V 50/60hz
- Power: 2 KW
- Ring Motor: 0.5-1 hp
- Roller Motor: 0.5-1 hp
Automation
- PLC : Delta
- Drive: VFD (Delta)
Machine Detail
- Body: M.S. structure
- Color: powder coating
- Ring: M.S. structure
- Size: 1.5*1.4*1.5 meters
- Weight: 550Kgs Approx.
Product Details Output:
- Coil Inner Diameter – Variable
- Coil Outer Diameter – Variable
- Coil Width/Height – Variable
- Coil Weight – Variable
- Coil output – 2 coil/minute (Depend on coil size or operater speed)
Features
- Adjustable overlapping by motor drive.
- Automatic cutting and holding of film.
- Automatic ejection after wrapping
- Adjustable stretch ratio.
- Vibration free operation.
- PLC based operation for timing of wrapping, rotation, cutting, and ejection
Application
- Dripe pipe
