Inkjet Printer
(Batch Coding Printer)

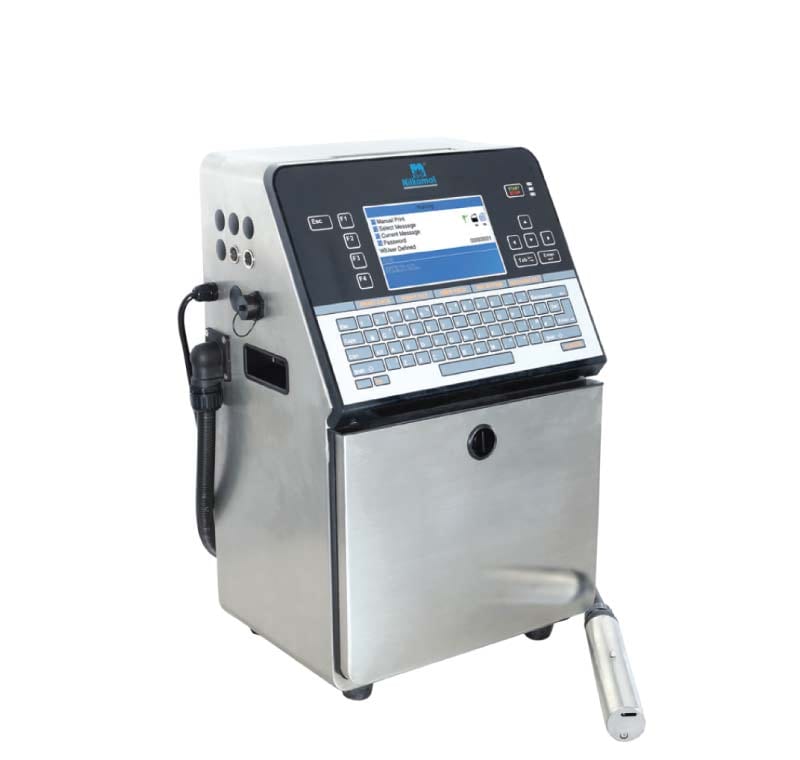

Continuous Inkjet Printer F560
Print - Mark - Pack
Unconventionally Simple!
Simple Unipart Ink System with No Lock-out hours
Easy to replace, combo external filter unit upto 2 years of life
Modular design with plug & play serviceability
No mess, No spill, quick change ink cartridge system
Long Life, High Durable IP55 rated construction
Continuous Inkjet Printer F560
Print - Mark - Pack
Unconventionally Simple!
Simple Unipart Ink System with No Lock-out hours
Easy to replace, combo external filter unit upto 2 years of life
Modular design with plug & play serviceability
No mess, No spill, quick change ink cartridge system
Long Life, High Durable IP55 rated construction

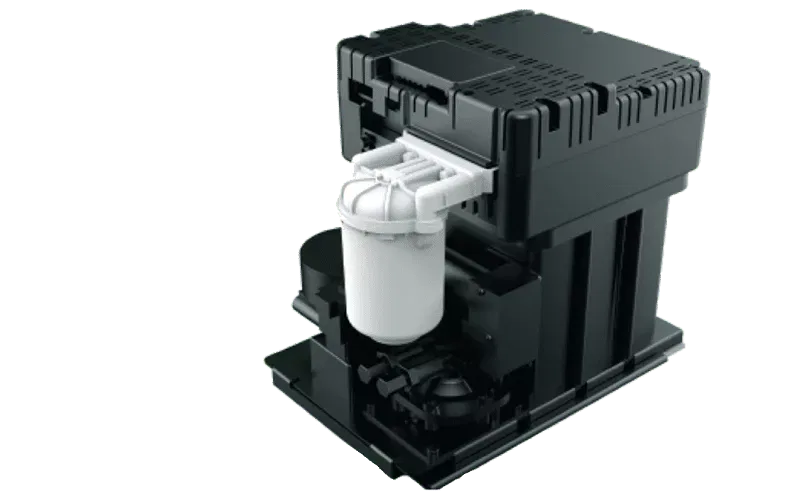

UNIPART INK SYSTEM
A quick change Combo External Filter unit placed outside Unipart Ink System requires no specila skills to replace when needed.
UNIPART INK SYSTEM
A quick change Combo External Filter unit placed outside Unipart Ink System requires no specila skills to replace when needed.
Food
Nozzle Bore
Standard: 60μ
Optional: 40,50 & 70μ
Maximum Line Speed
25-320 m/min with 0.417mm print dot interval
Printing Formats
Single-line: 5×5, 6×5, 7×4, 7×5, 9×7, 9×7 Bold, 11×9, 11×9 Bold,
16×12, 24×16, 32×24
Twin-line: 5×5, 6×5, 7×4, 7×5, 9×7, 9×7 Bold, 11×9, 11×9 Bold, 16×12
Tri-line: 5×5, 6×5, 7×4, 7×5, 9×7
Quad-line: 5×5, 6×5, 7×4, 7×5
Five Line: 5×5, 6×5
Rated Character Height
2 mm to 12 mm, depending on font selected
Nominal Throw Distance
Minimum: 2 mm
Maximum: 15 mm
Keyboard
Standard American keyboard
Display
7” LED, High Contract WYSIWYG display.
Custom Logo/Graphics
Can be created by individual user on printer or PC with
Monochrome Bitmap format
Printhead Umbilical
Heavy Duty Armoured
Length 2700mm,
Diameter 21mm,
Bending Radius 150mm
Consumables Replenishment
Ink Cartridge Volume: 750ml
Makeup Cartridge Volume: 750ml
Makeup Cartridge: Select according to ink type
Cleaning Solutions: Select according to ink type
Barcode
Data matrix, QR code, Code 39, EAN8, EAN13,
Code 128, EN128, UPC-A
Data Interface
Standard USB with logo backup features
Specifications
Input Language
Standard: English (USA)
Optional: Arabic, Chinese
User Interface
Standard: English (USA)
Optional: Arabic, Chinese
Message Storage
1000 complex messages. Unlimited storage using USB.
Console
MOC Stainless steel
570 mm height
345 mm wide
286 mm deep
Printhead
MOC Stainless steel
Heated print head
2 Valve inside the Printhead
Auto flush as Standard
Printhead Diameter 41mm
Printhead Length 270mm
Electrical Requirements
Voltage: 100-240VAC, 50Hz
Power: 120W-150W
Approximate Weight
Unpacked and dry: 27 kg
Gross weight with complete package: 45 kg
Optional
Positive air pump
Dry air kit for high humidity (requires plant air)
Product detect
RS232, encoder
Ethernet
90 degree print head
Conveyors and brackets as needed
Environmental
Protection Rating: IP55*
Temperature: 5 C to 45 C
Humidity Range: 30-90% RH non-condensing
